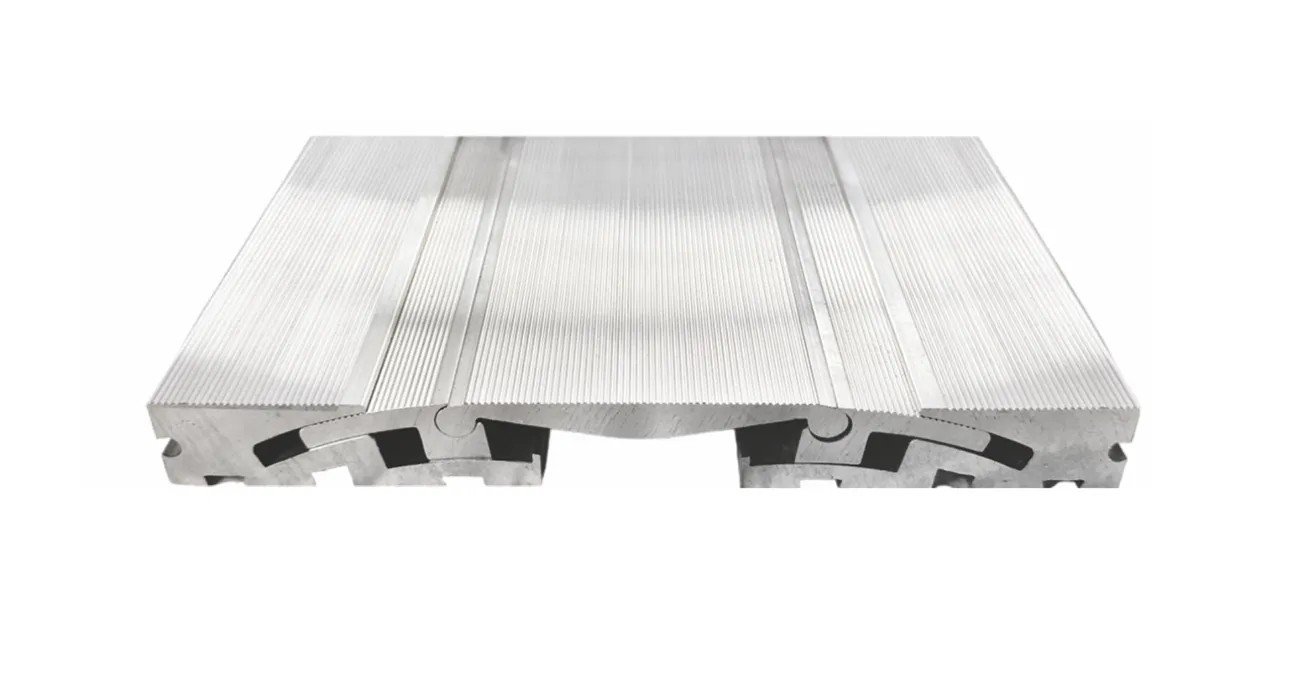

Conecto HDS (Split Type) – Heavy-Duty Expansion Joint System
The Conecto HDS (Split Type) is a heavy-duty expansion joint system designed for large industrial buildings, elevated floor slabs, and structural joints where significant movement must be accommodated.
Unlike traditional expansion joint systems that require full replacement when damaged, the HDS Split Type joint features an innovative modular design that allows the upper and middle elements to be replaced independently. This significantly simplifies maintenance while reducing downtime and long-term repair costs.
The system is engineered to accommodate both horizontal and vertical structural movements, making it particularly suitable for applications exposed to thermal expansion, structural movement, or seismic forces. When properly installed, the HDS system provides durable joint protection, noise reduction, and long-term operational reliability in demanding industrial environments.
Key Features
Modular split design allows quick replacement of top and middle components without removing the entire joint
Designed for elevated slabs and structural expansion joints in large buildings
Accommodates horizontal and vertical structural movement
Heavy-duty aluminum and steel construction for long service life
Noise-reducing design for smoother traffic across structural joints
Ideal for high-movement structural joints in industrial facilities

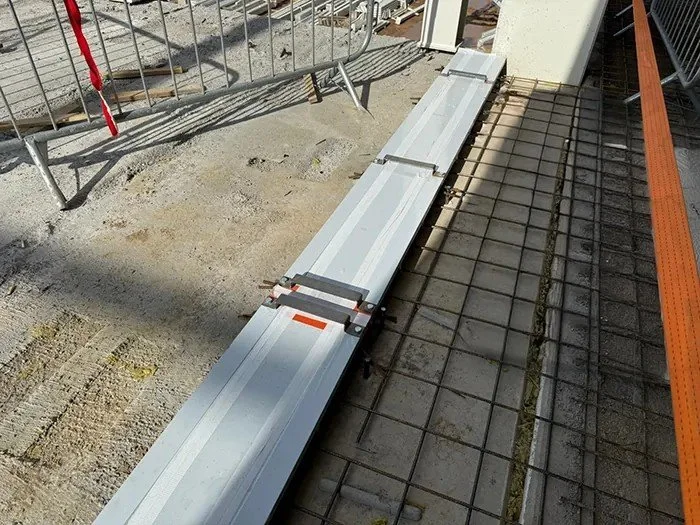

Prefabricated assemblies for simplified installation
Typical Applications
The HDS expansion joint system is commonly used in:

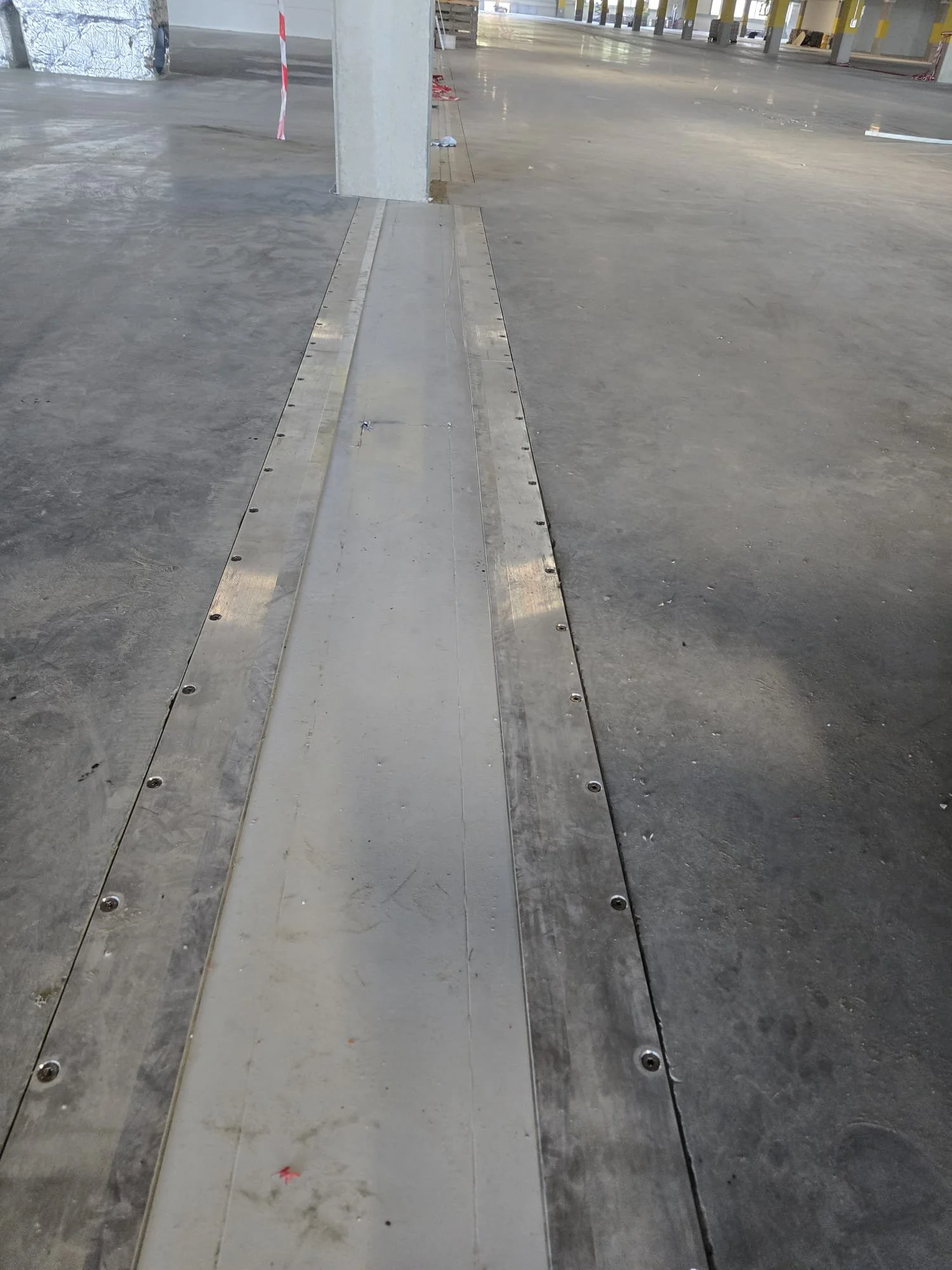

Industrial buildings with elevated slabs
Mezzanine floors and structural deck levels
Distribution centers and warehouses
Parking structures
Buildings requiring large structural expansion joints
Structures subject to seismic or thermal movement TDS hds-en-split-type-1
Standard Joint Length
3.0 m (9 ft 10 1/8 in) prefabricated joint sections TDS hds-en-split-type-1
Why Expansion Joint Systems Like HDS Are Important
Large industrial structures experience continuous movement caused by temperature changes, structural loads, and seismic forces. Without properly designed expansion joints, this movement can lead to:
Cracking of floor slabs
Structural stress concentrations
Joint failure or floor damage
The HDS expansion joint system is engineered to safely accommodate these movements while protecting the floor structure and maintaining operational performance.
