Straight 08NA50-5D – Straight Armored Floor Joint

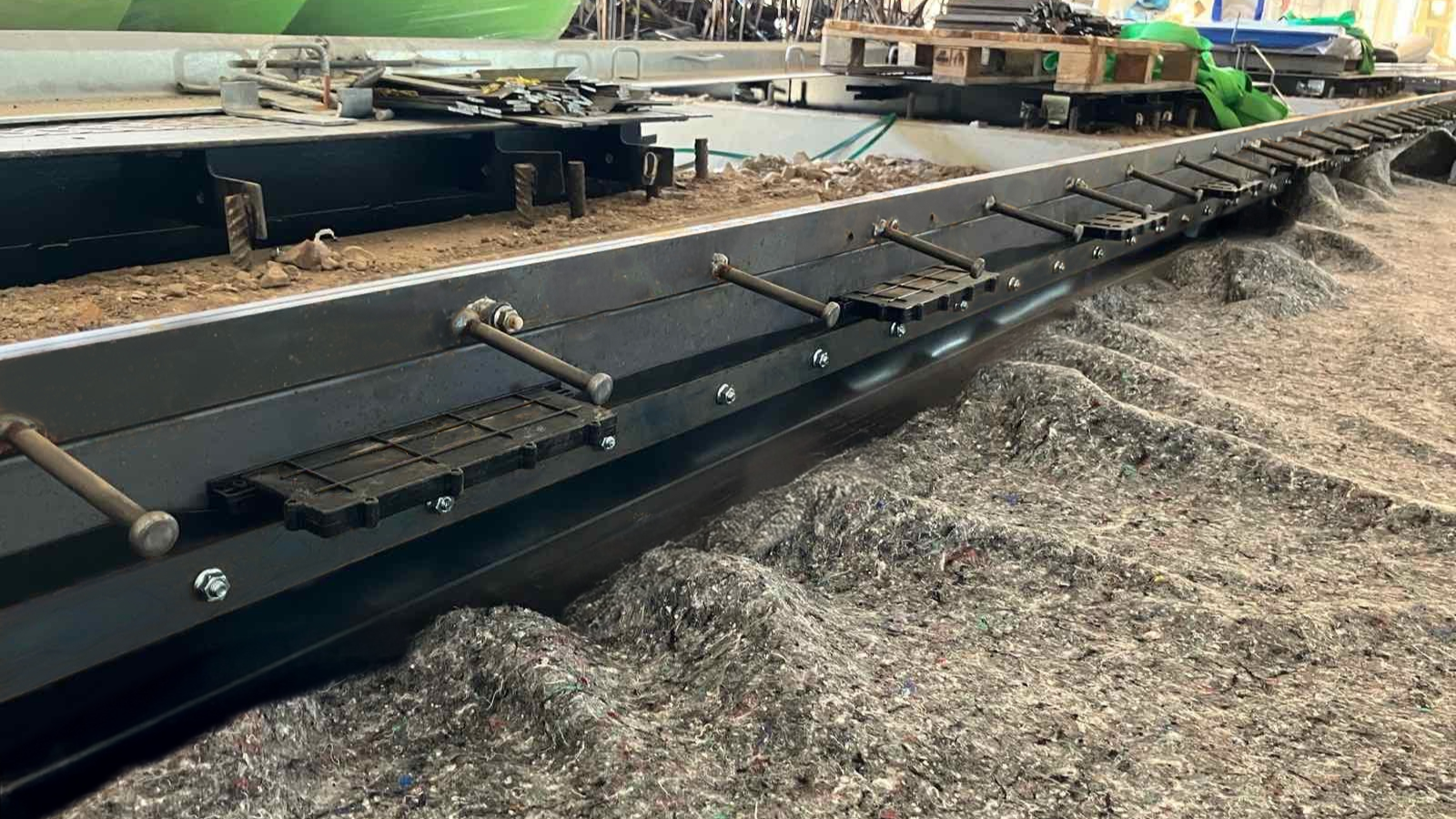

The Conecto Straight 08NA50-5D is a heavy-duty armored construction and expansion joint designed for industrial concrete floors subjected to high traffic and heavy loading conditions. The system provides reliable load transfer between adjacent slab panels while allowing controlled horizontal movement caused by concrete shrinkage and thermal expansion.

The joint assembly incorporates high-strength rectangular steel plate dowels positioned within engineered sleeves, allows slab movement while preventing vertical displacement between slabs. This load-transfer mechanism reduces the risk of joint deterioration, slab curling, and edge damage while maintaining long-term floor performance.

The straight armored steel profile also acts as a stay-in-place formwork and edge protection system, protecting slab edges from spalling and impact damage caused by forklifts and other material-handling equipment.

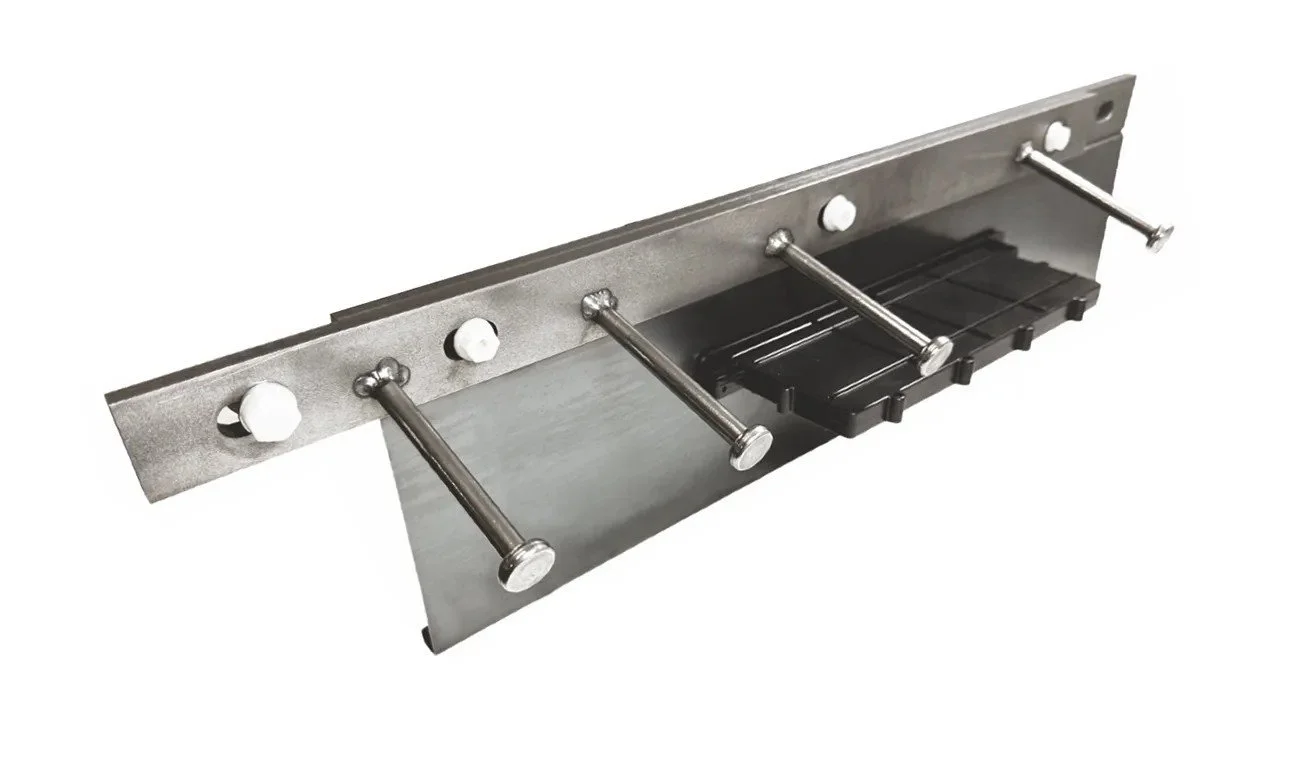

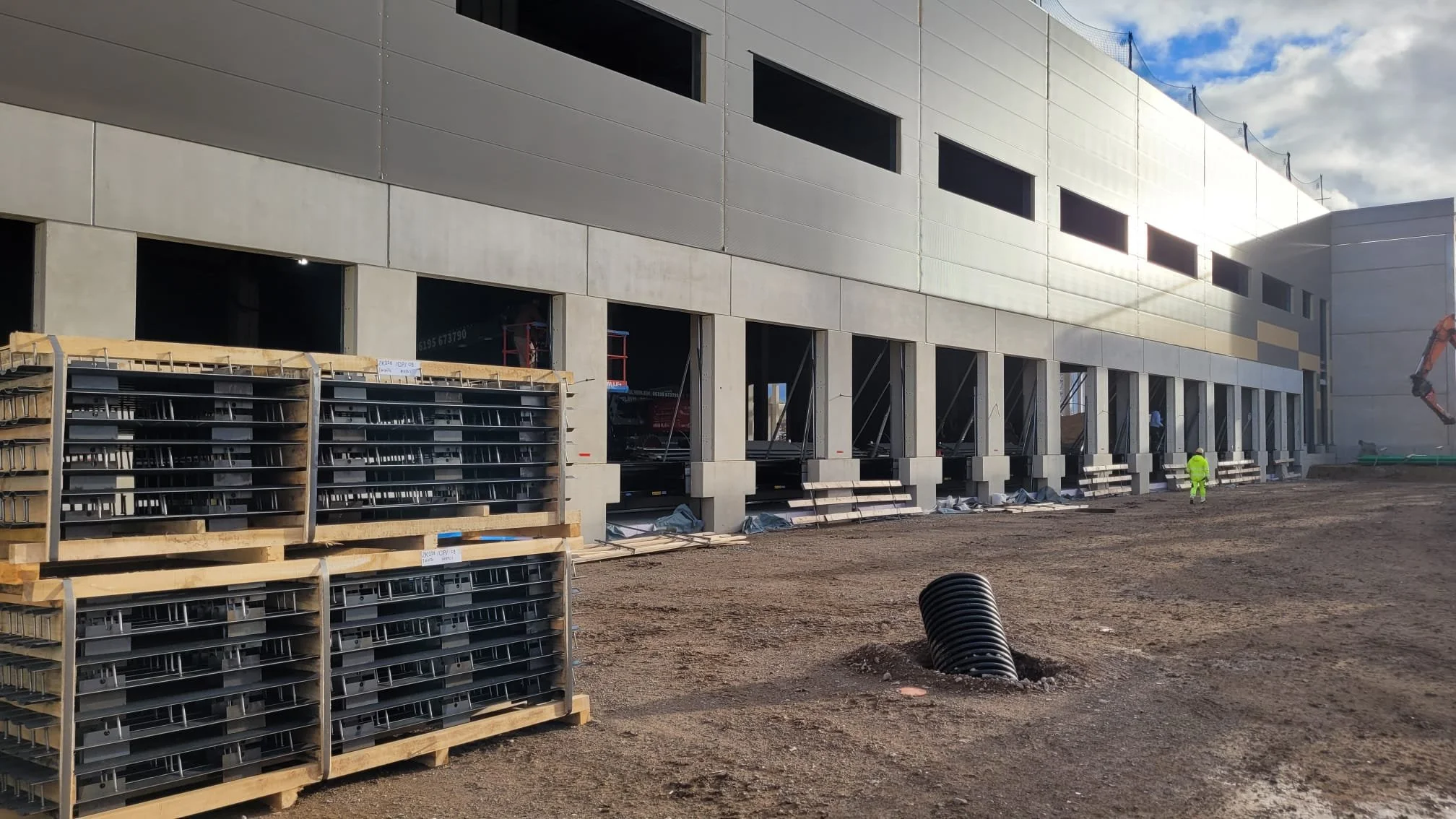

The Straight 08NA50-5D joint system is supplied as a prefabricated assembly, allowing contractors to install joints quickly and accurately during slab placement.

EASY, NO WELDING REQUIRED, BOLT TOGETHER INSTALLATION

Key Features

• Heavy-duty straight armored steel profile for slab edge protection

• High-strength rectangular plate dowel load transfer system

• Allows horizontal slab movement while preventing vertical displacement

• Prefabricated joint assemblies for fast installation

• 5-dowel configuration (5D) for high load capacity

• ABS protective covers and engineered plastic sleeves to maintain dowel alignment

• Wing-nut connection system allows quick joint alignment on site

• Optional galvanized or stainless steel versions for corrosive environments

Typical Applications

The Straight 08NA50-5D armored joint is designed for industrial concrete floors including:

• Distribution centers and warehouses

• Manufacturing plants

• Logistics and fulfillment facilities

• Industrial storage facilities

• Heavy forklift traffic areas

Expansion joints are typically spaced to divide floor slabs into regular panels and to accommodate shrinkage and thermal movement within large industrial floors.

Technical Highlights

• Steel Joint Filler Shelf

• Standard Joint Length:
  2.8 m (9’-2-1/4”) prefabricated joint sections

• Standard Plate Dowel Size:
  180 × 120 × 8 mm
  (7-1/16” × 4-3/4” × 5/16”)

  Optional Heavy-Duty Dowel:
  180 × 140 × 10 mm
  (7-1/16” × 5-1/2” × 3/8”)

• Standard Dowel Configuration:
  5 dowels per 3.0 m joint section (5D configuration)

• Standard Dowel Spacing:
  600 mm (23 5/8 in) center-to-center

• Available Slab Thickness Range:
  100 – 305 mm (for 4” to 13” slabs) depending on selected profile height

  Larger sizes available upon request

More information available here.

‍
