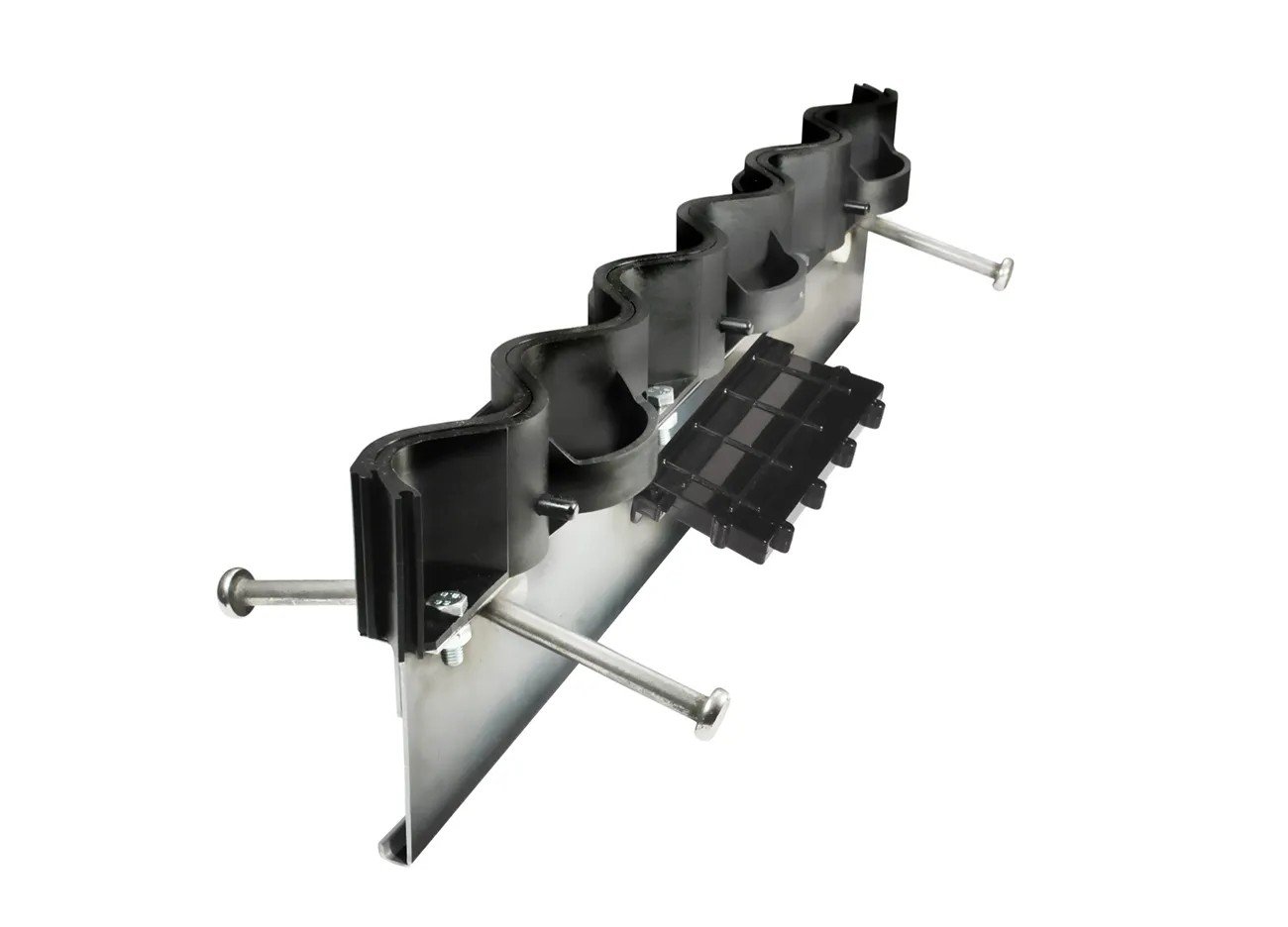

Composite Polymer Sinus 06NSTW60-5D – Sinusoidal Armored Floor Joint
The Conecto Composite Polymer Sinus 06NSTW60-5D is an advanced sinusoidal construction and expansion joint designed for high-performance industrial concrete floors. Unlike traditional steel-armored joints, this system utilizes a glass-fiber-reinforced composite polymer sinus profile, delivering extremely smooth forklift travel while significantly reducing vibration and impact loads at the joint.
The sinusoidal wave geometry allows forklift wheels and other material-handling equipment to cross the joint with minimal impact, creating the sensation that there is virtually no joint in the floor surface during operation. This dramatically reduces wear on wheels, racking systems, and transported goods while improving operator comfort.
The system incorporates a steel plate dowel load-transfer mechanism designed to transfer horizontal loads between adjacent slab panels while permitting controlled horizontal movement caused by shrinkage and thermal expansion. This combination of composite polymer surface protection and steel load transfer helps maintain long-term floor performance in high-traffic industrial environments.

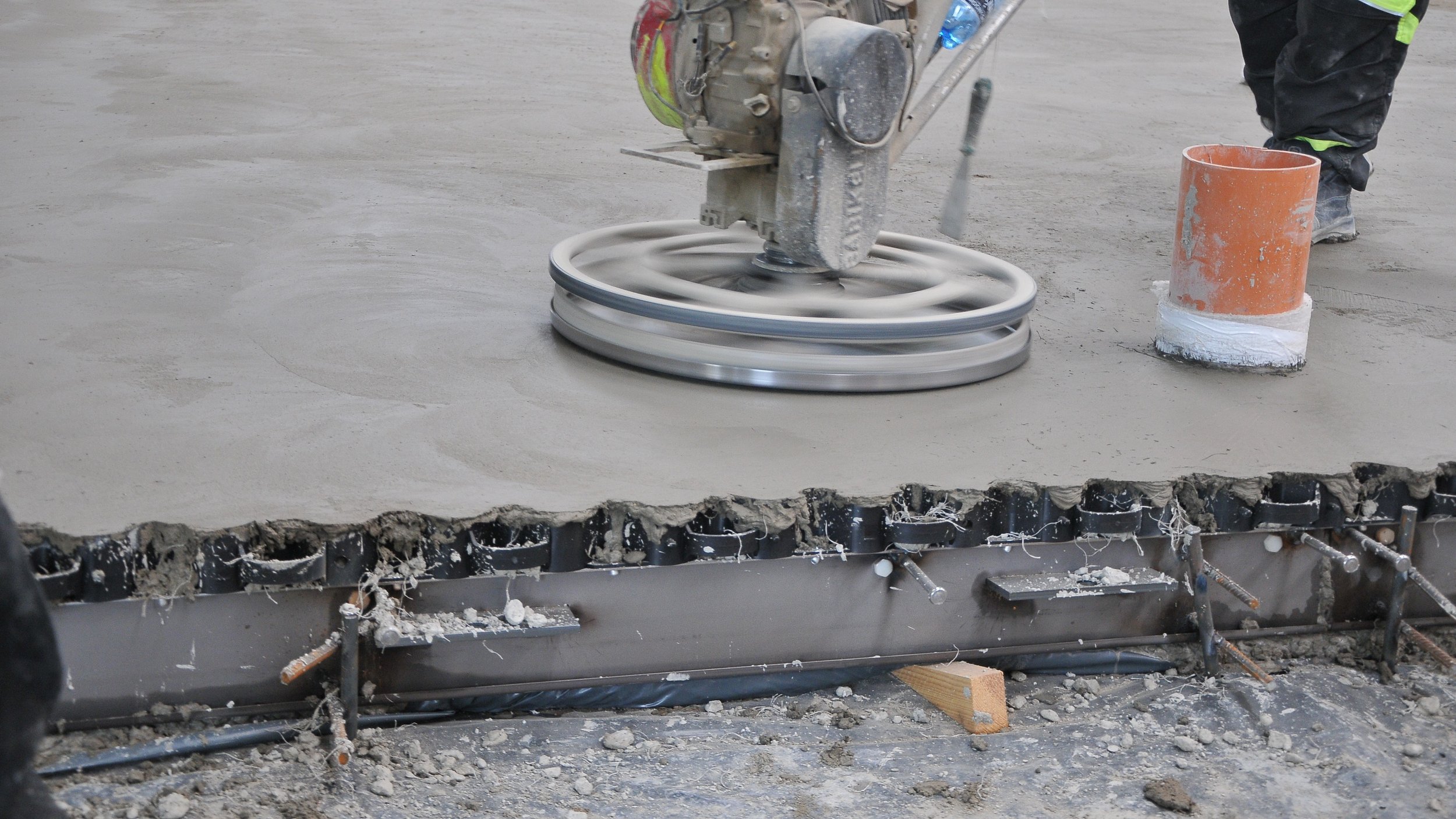

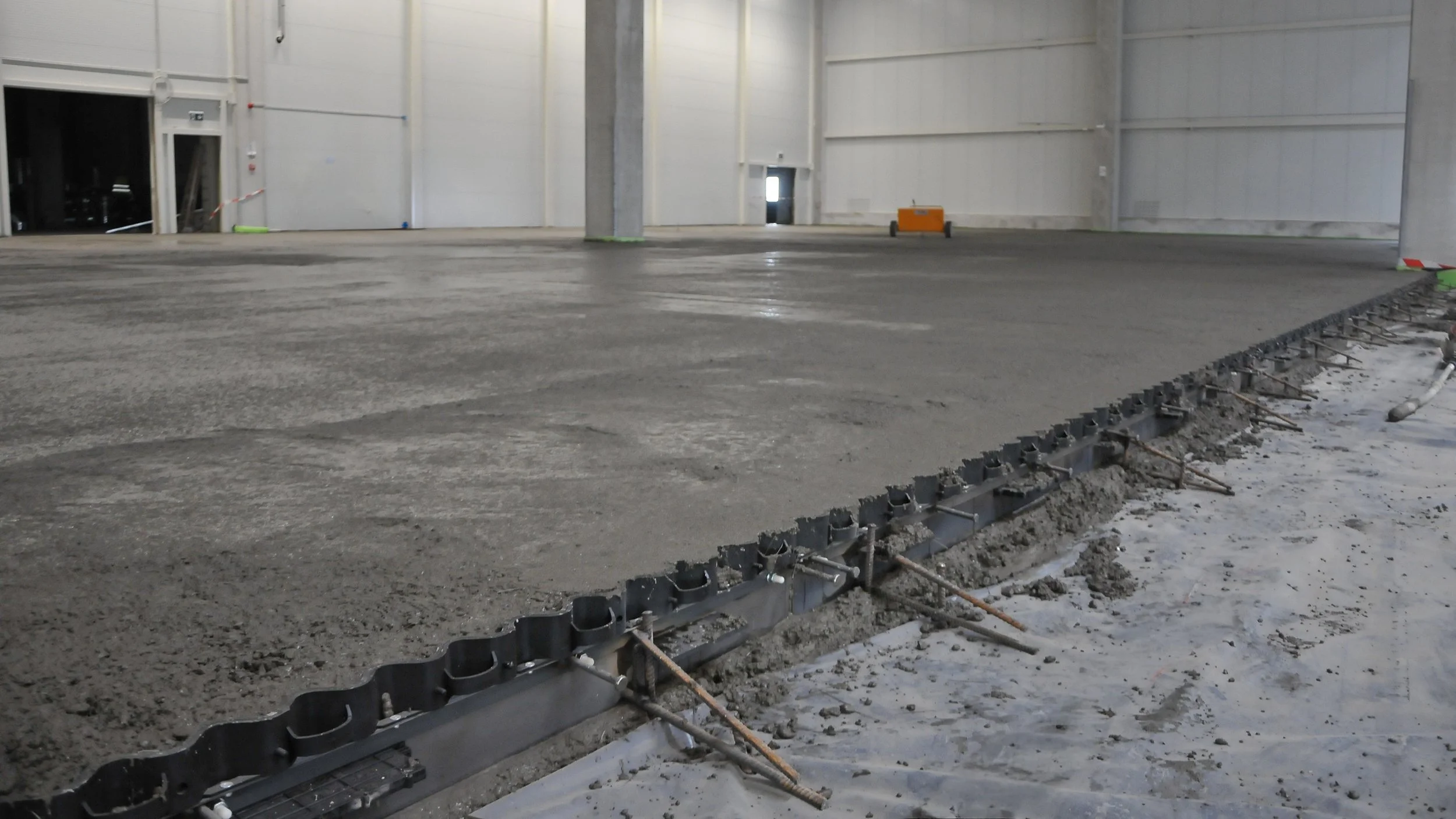

The Composite Polymer Sinus 06NSTW60-5D is supplied as a prefabricated armored joint assembly, enabling accurate placement and efficient installation during slab construction.
Key Features
Composite polymer sinusoidal profile for ultra-smooth forklift crossing
Shock-free and vibration-free wheel transfer across joints
Glass-fiber-reinforced composite material for high durability and corrosion resistance
Reduced steel content, lowering weight and CO₂ footprint of the system
Plate dowel load transfer system maintains slab alignment under heavy loads
Grinding-compatible design for polished and high-flatness floors
Corrosion-resistant system suitable for aggressive industrial environments
ABS protective dowel sleeves ensure proper dowel movement and durability
Typical Applications
The Composite Polymer Sinus 06NSTW60-5D armored joint is commonly used in:
Warehouses and distribution centers
Guided wire systems for AGV
Logistics and fulfillment facilities
Manufacturing plants
Industrial storage facilities
High-traffic forklift aisles and automated warehouse systems
Technical Highlights
Steel Joint Filler Shelf
Standard Joint Length: 2.4 m (7’-10-1/2”) prefabricated joint sections
Standard Plate Dowel Size:
180 × 120 × 8 mm
(7-1/16” × 4-3/4” × 5/16”)Optional Heavy-Duty Dowel:
180 × 140 × 10 mm
(7-1/16'“ × 5 1/2” × 3/8”)Standard Dowel Spacing:
600 mm (23 5/8”) center-to-center (5D configuration)Other dowel spacings:
500 mm/19-3/4” (6D configuration) and 430 mm/17” (7D configuration)
Available Slab Thickness Range:
100 – 305 mm (4 in – 12 in), depending on selected profile height
